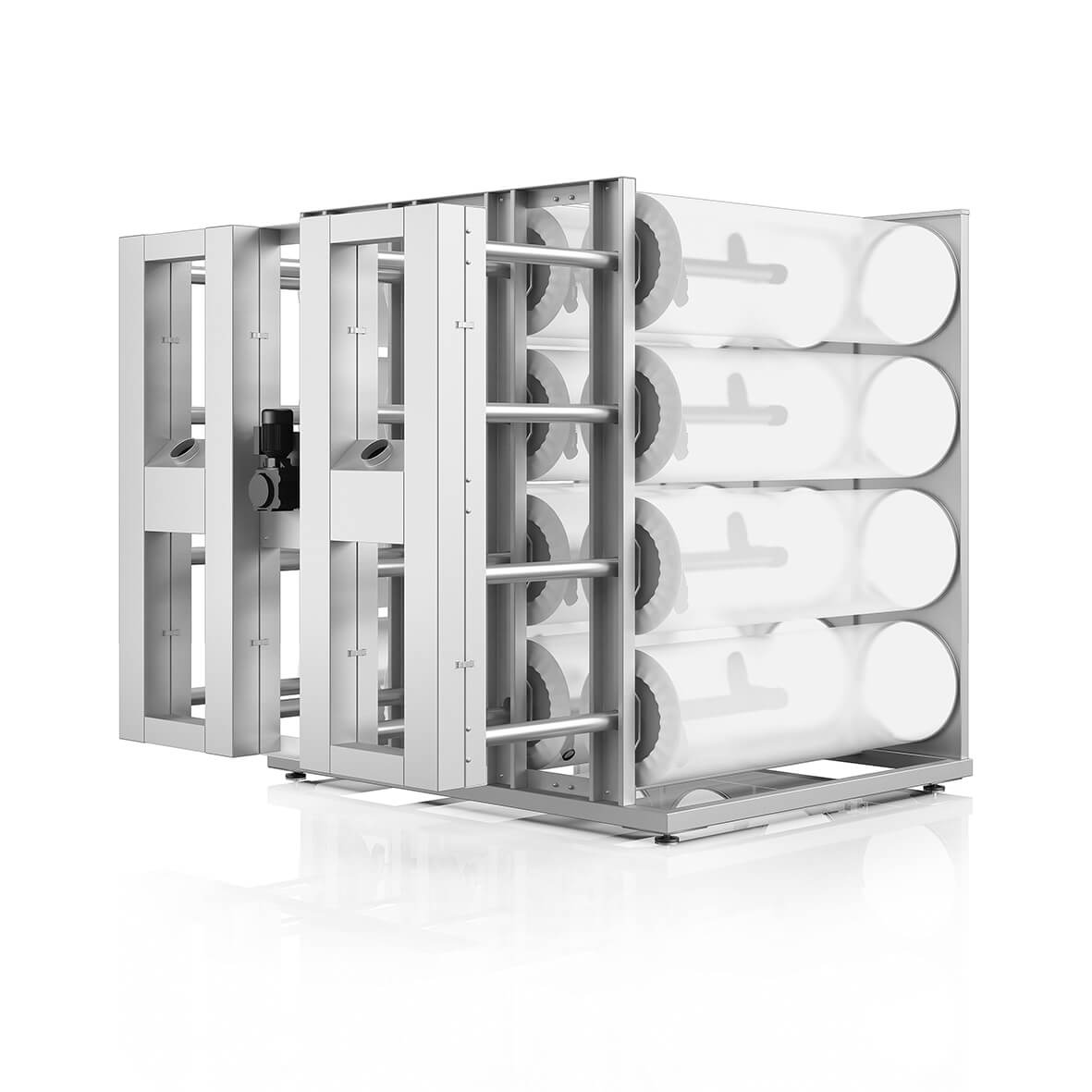

VersaDrum Filter VDF

The VersaDrum Filter is a compact, space-saving solution that combines multiple small drum filters into a single, efficient unit, maximizing filter area in tight spaces. The VersaDrum VDF-8 and VDF-16 models are highly effective for filtering dust and small fibers. Available with either 8 or 16 filter drums, each drum is continuously cleaned by two rotating suction nozzles, ensuring optimal performance. Extracted materials are efficiently transported by a conveying fan to a separator, where they are discharged from the process, ensuring smooth and reliable operation.

Features

  • Air flow from inside to outside prevents generating of an explosive atmosphere
  • High separation efficiency due to special invented high quality filter media
  • Suitable for higher dust loads than TF series
  • No pressure fluctuations in the system
  • Air volumes up to 80,000 m³/h (in a single unit)
  • Temperatures up to 180°C
  • Filter quality up to F7

Options

  • Pressurization available
  • Housing chamber for under pressure arrangement

Core applications

  • Non-Woven Industry
  • Textile industry
  • Insulation industry
  • Woodworking industry
  • Paper industry
  • Corrugated packaging industry
  • Automotive

Materials

  • Standard steel, painted
  • Galvanized steel
