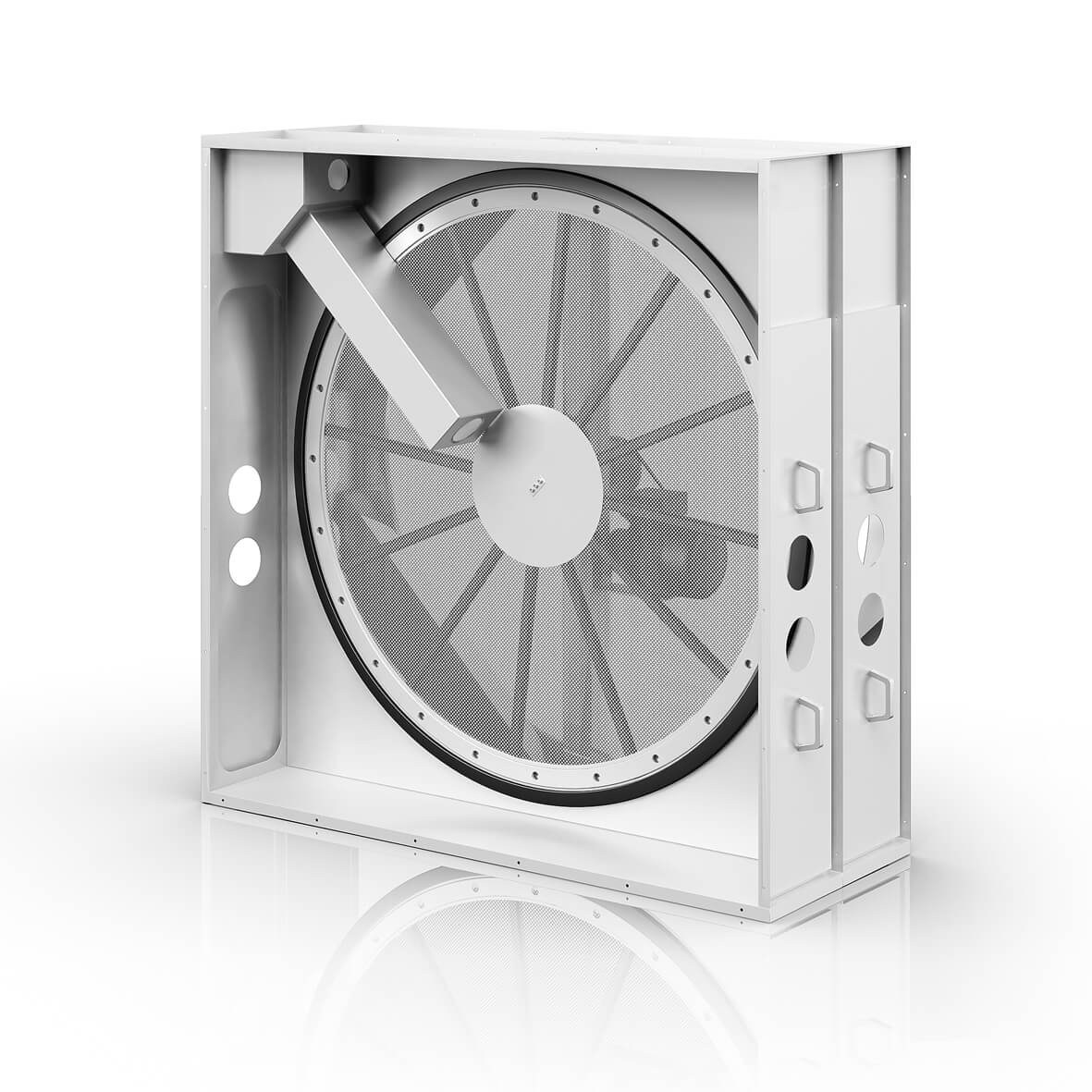

PreFilter TVM
The TVM Prefilter is designed for multi-stage filtration of air streams with high fiber or particle content, making it an ideal pre-separation solution. Customizable in size, filter media, drive type, and other specifications, the TVM is tailored to fit your unique application and site conditions. For air streams with heavy material content, the rotating pre-filter disc can be cleaned with compressed air for increased performance. The TVM is often used as a pre-separator for drum filter systems, ensuring smooth operation even in challenging conditions with high particle or fiber concentrations in the raw gas.
Features
- No pressure fluctuations in the system
- Continuous cleaning
- Drive elements on the clean gas side
- Compact design
- Air volumes up to 130,000 m³/h
- Temperatures up to 200°C
- Mesh size: 60µm – 5mm
Options
- Belt or chain drive
- Filter media made of nylon or stainless steel
- Compressed air blow-off lance
- Differential pressure measurement
Core applications
- Non-Woven Industry
- Textile industry
- Glass fiber industry
- Woodworking industry
- Paper industry
Materials
- Standard steel, painted
- Galvanized steel
- Stainless steel 1.4301
